* All types of Urine Formed Elements are classified and counted, with automatic erythrocytes morphological analysis available and real images and statistical diagrams displayable and printable;

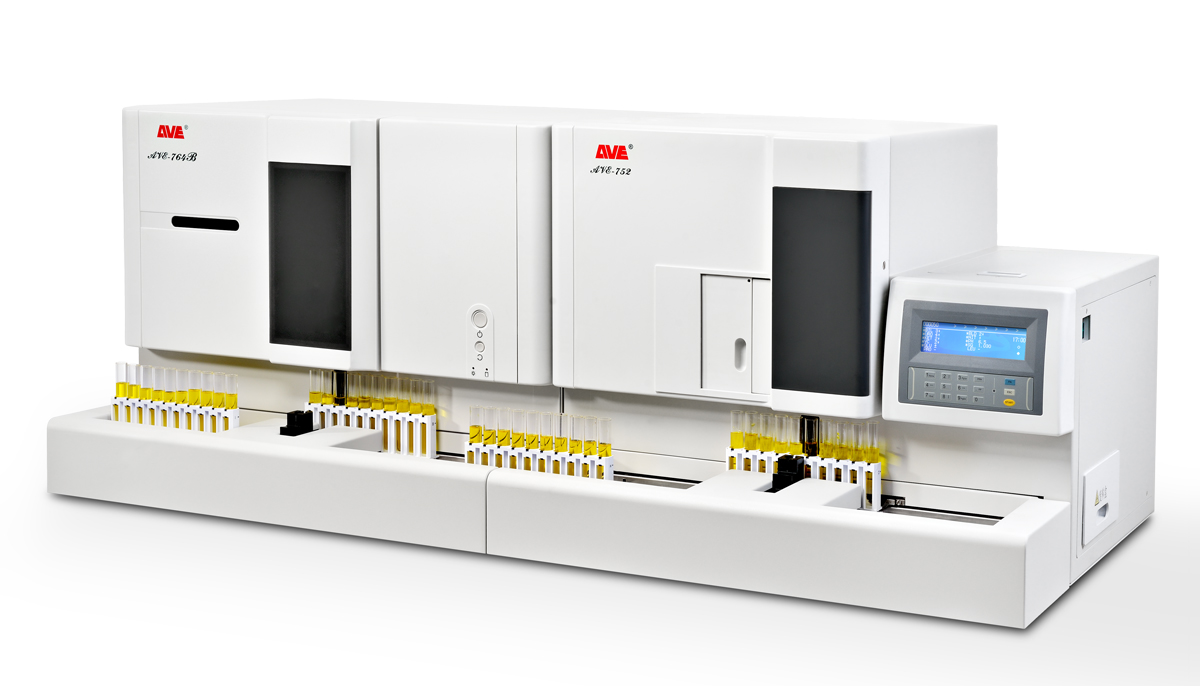

* It is connectable to Automatic Urine Analyzers and a comprehensive report is generated; * Urine physical indexes are reportable; |
Use automated morphological microscopy technology to capture real images of urine formed elements, and then locate and track, recognize, classify and count them. |
* Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine;
* Un-centrifuged urine samples at cutoff concentration level of 3-5cell/µl are detectable; * Automatic sampling system with liquid level detection; * Automatic recognition, classification and quantitation of urine formed elements; * Precise erythrocytes morphological analysis helps to determine the source of hematuria; * Real whole view-field microscopic images of urine formed elements are presented; * Automatic notice of verification and on-screen verification, no additional microscopic review needed; * Characteristic parameters of urine formed elements are available for further clinical research; * Standardized and confirmatory analysis report with both images and diagrams available; * Self-learning ability continuously improves the recognition accuracy; * Unique morphological quality control available; * Unidirectional or bidirectional interface with LIS/HIS; * Software and language upgrades by USB stick; * Combinable with automatic urine analyzers, customized for medium or large-sized laboratories; |
Auto-detected Urine Formed Elements: Normal red blood cells (NRBC), Abnormal red blood cells (ARBC), White blood cells (WBC), Casts (CAST), Epithelial cells( EPI), Yeast (YST), Crystals (CRYS), Mucus (MUC) and Bacteria (BAC).Further sub-classification is available with manual on-screen verification!
Magnification: Standard 10X & 40X images
Memory: Min. 200,000 results (including all images captured)
Min. Sample volume: 2.0 ml
Sample level detection: Yes
Max. Sample loading number: 6 racks of 10 tubes
Throughput: Up to 80 tests / hour (764A), up to 100 tests / hour (764C), up to 120 tests / hour (764B)
Built-in Computer: Yes
Built-in Barcode reader: Yes
Printer: Laser, external, optional
Interfaces: USB, RS232, LAN
Dimensions (main unit): 680 x 650 x 545mm (L x D x H)
Weight (main unit): 59kg
Power (main unit): 100-240V~50/60Hz, 450VA
